Contents

1. Sequence containers
2. Container adaptors
3. Associative containers
4. Unordered associative containers
5. Standard non-containers
6. Non-standard containers

Sequence containers

1. vector
2. deque
3. list
4. array - C++11
5. forward_list - C++11

Container adaptors

1. stack
2. queue
3. priority_queue

Associative containers

1. set
2. map
3. multiset
4. multimap

Unordered associative containers

1. unordered_set
2. unordered_map
3. unordered_multiset
4. unordered_multimap

Standard non-containers

1. bitset
2. vector<bool>

Non-standard containers

1. boost::ptr_container
2. boost::multi_array
3. boost::intrusive
4. boost::bimap
5. boost::circular_buffer

STL

• STL stands for Standard Template Library
• Created by Alexander Stepanov and Meng Lee

Standard Template Libraries

• Microsoft STL, based on Dinkum STL
• libstdc++ by GNU
• libc++ from clang
• EASTL
• STLPort
• Dinkum STL

std::vector

Probably 80% or 90% of the time, std::vector is the right choice for container.

template <typename T,
    typename Allocator = std::allocator<T>>
class vector;

std::vector

• Elements are stored sequentially in memory
• Random-access
• push_back - O(1)*
• random insert - O(N)
• random access - O(1)

• overhead
• 3 pointers for the vector
• one indirection for access

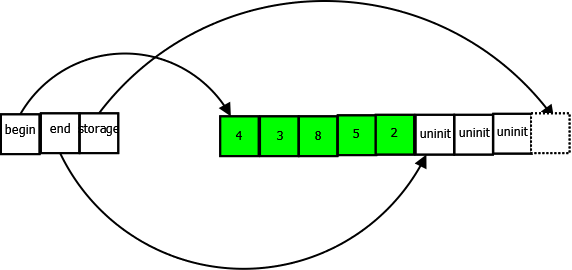

vector has:

• size - the number of elements in the vector
• capacity - the number of elements that can fit in the vector, without growing

Growing

• growing - the process of allocating a new buffer for storing the elements, copying/moving them to the new buffer and deallocating the old buffer
• Every time the vector grows by a constant factor
  • 2, sqrt(2), golden ratio
  • this allows push_back to be O(1) *
    • N push_backs are O(N)

Beware of the growing vector

vector growing invalides all iterators, references or pointers to elements in the vector, because the storage has moved and the elements are moved to the new storage

std::vector<Texture> cache;

Texture& myTexture = cache[42];

cache.push_back(Texture(...));

renderer.Draw(myTexture); // oops

reserve

• reserve(n) Sets the capacity to at least n elements
• Always use it when you now the number of elements in advance

std::ifstream input("input.txt");

int n;
input >> n;
std::vector<int> numbers;
numbers.reserve(n);
while (n--)
{
    int x;
    input >> x;
    numbers.push_back(x);
}

capacity VS size

std::ifstream input("input.txt");

int n;
input >> n;
std::vector<int> numbers(n);
for (int i = 0; i < n; ++i)
{
    input >> numbers[i];
}

Still a single allocation

But ...

std::vector<int> numbers(n); is a call to vector(size_t count, T value = T()), i.e. vector(size_t count, int value = 0).

This constructor initializes all the numbers with 0. And we overwrite them immediately.

reserve doesn't initialize anything.

When elements are loaded one by one it is better to use reserve.

void ToVector(int* a, size_t n, std::vector<int>& v)
{
    v.resize(n);
    // if v.size() < n, allocate storage for n ints
    std::copy(a, a + n, v.begin());
}

std::copy can use std::memcpy, so it will be faster

std::vector almost never frees storage

void reserve(size_t n) {
    if (n > capacity()) {
        grow(n);
    }
}

void resize(size_t n) {
    reserve(n);
    if (n > size()) {
        // default construct the missing elements
        // and set the size to n
        for (auto new_end = _begin + n; _end != new_end; ++_end)
        {
            new (_end) T();
        }
    } else {
        // destruct any extra elements
        // and set the size to n
        for (auto new_end = _begin + n; _end != new_end; --_end)
        {
            _end->~T();
        }
    }
}

void clear() {
    resize(0);
}

Sort the sequences in a file

N1 A1_1 A1_2 ... A1_$N1
N2 A2_1 A2_2 ... A2_$N2
...

std::ifstream input("input.txt");

while (input)
{
    int n;
    input >> n;
    std::vector<int> numbers(n);
    for (int i = 0; i < n; ++i)
    {
        input >> numbers[i];
    }

    std::sort(numbers.begin(), numbers.end());

    print_result(numbers);
}

Every iteration `numbers` is destroyed, its

std::ifstream input("input.txt");

std::vector<int> numbers;

int n;
int x;
while (input)
{
    input >> n;
    numbers.resize(n);
    for (int i = 0; i < n; ++i)
    {
        input >> numbers[i];
    }

    std::sort(numbers.begin(), numbers.end());

    print_result(numbers);
}

`numbers` will go to the maximum sequence

shrinking a vector

So how to actually free storage from a vector?

C++11 style

std::vector<int> v;
std::vector<int> q;
// ...
v.clear();
v.shrink_to_fit();

q.resize(5);
q.shrink_to_fit();

C++98 style - swap idiom

std::vector<int> v;
std::vector<int> q;
// ...

// clear v
std::vector<int>().swap(v);

// shrink q
std::vector<int>(q).swap(q);

vector.erase

Erasing a random element in a vector, requires all the elements after the erased to be moved 1 position towards the front. This makes the erase to be O(N)

vector.erase

If the order of elements is not important, you can make:

std::vector<A> v;
std::vector<A>::iterator x;

// ...

swap(*x, v.back());
v.pop_back();

vector and OOP

std::vector<Base> c;
Derived d;

c.push_back(d);
// d just got sliced.
// only the Base part of d gets copied

vector and OOP

{
    std::vector<Base*> c;

    c.push_back(new Derived);

}
// the Derived object leaked

vector and OOP

• vector is not polymorphic friendly
• vector doesn't take ownership of your pointers
  • std::vector> might do

vector

Everytime you need a container:

1. Try vector
2. If it doesn't seem to fit, try vector again
3. If it still doesn't fit, use something else

std::array - C++11

Array with constant at compile time size with STL friendly interface.

template <typename T, size_t Size>
class array {
public:
    iterator begin();
    iterator end();
    // ..
private:
    T m_Array[Size];
};

• No allocations
• Does not silently decay to T*

std::dynarray - C++XY

• Array with fixed at construction time size
• STL friendly interface
• Voted out of C++14, but still might get in C++17

Stack allocation

The idea is that if the dynarray size is small enough, it storage to be allocated on the stack, instead of on the heap. This will be much more efficient.

Stack allocation

C++ doesn't allow stack allocation, so the proposal says:

• implement always as a single heap allocation
• in future the compiler might replace the heap allocation with stack allocation if it is safe.

deque

Double Ended Queue

• push_back, pop_back - O(1)*
• push_front, pop_front - O(1)*
• random insert - O(N)
• random access - O(1)

The cost of growing a deque is lower than growing a vector, because only the collection with pointers to segments is copied.

list

• C++ list is double-linked list
• Most implementations are circular, but that is not required by the standard

Operations

• any insert / any erase - O(1)
• random access - O(N)

Overhead

• two pointers for each element in the list
• elements can be at random locations in memory

list.size

• O(N) or O(1) - C++98
• O(1) in C++11
  • at the cost of O(N) splice in certain cases

list.splice

• The most important operation of list
• Allows to take a piece of one list and insert it in another
• O(1)
  • moving elements in a single list
  • moving an entire list in another list
  • moving a single element from one list to another
• O(N) - moving [start, end) of one list to another
  • it has to count the elements in [start, end) so that `size()`` can be a O(1)

Invalidation

• elements are never moved around the memory
• iterators and pointer/references to elements always remain valid, unless the element is erased from the list

Usage

Use list only if:

• most of the time the elements are shuffled around
• the elements must never move in memory
  • consider std::vector<pointer> - it will be more efficient again

forward_list - C++11

• Single linked list
• some STL libraries have a non-standard slist container

Container adaptors

1. stack
2. queue
3. priority_queue

stack and queue are not containers, but they adapt (restrict) the operations over the underlying container to LIFO and FIFO

template <typename T, typename C = std::deque<T>>
class stack;

template <typename T, typename C = std::deque<T>>
class queue;

priority_queue is a binary heap over a container.

template <typename T,
          typename Container = std::vector<T>,
          typename Cmp = std::less<typename Container::value_type>
          >
class priority_queue;

Associative containers

1. set
2. map
3. multiset
4. multimap

C++11 Unordered associative containers

1. unordered_set
2. unordered_map
3. unordered_multiset
4. unordered_multimap

Associative containers associate keys with values. Both variants have very similar usage and API, but different implementations and requirements for the types.

template <typename T,
          typename Compare = std::less<T>,
          typename Allocator = std::allocator<T>
          >
class set;

template <typename T,
          typename Compare = std::less<T>,
          typename Allocator = std::allocator<T>
          >
class multiset;

template <typename K,
          typename V,
          typename Compare = std::less<K>,
          typename Allocator = std::allocator<std::pair<const K, V>>
          >
class map;
template <typename K,
          typename V,
          typename Compare = std::less<K>,
          typename Allocator = std::allocator<std::pair<const K, V>>
          >
class multimap;

multiset and multimap allow duplicating of keys.

set, map, multiset, multimap are ordered because when iterating the (key, value) pairs in the container, the keys are orderer by the Compare comparator.

The order of traversing duplicated keys in a multiset or

multimap is undefined

For all orderered associative containers the standard requires:

• insert - O(logN) - average and worst
• lookup - O(logN) - average and worst
• delete - O(logN) - average and worst

This means that effectively they are binary search trees. Most implementations are [red-black tree][rbt].

rbt: http://en.wikipedia.org/wiki/Red%E2%80%93black_tree

Unordered containers have the following complexities:

• insert - O(1) average and O(N) worst
• lookup - O(1) average and O(N) worst
• delete - O(1) average and O(N) worst

This means that they have to be implemented as hash tables.

template <typename T,
          typename Hash = std::hash<T>,
          typename KeyEqual = std::equal_to<T>,
          typename Allocator = std::allocator<T>
          >
class unordered_set;

template <typename K,
          typename V,
          typename Hash = std::hash<K>,
          typename KeyEqual = std::less<K>,
          typename Allocator = std::allocator<std::pair<const K, V>>
          >
class unordered_map;

Generally unordered containers have better performance over ordered, so if the order is not important - use `unordered*`

sorted vector is also an associative container that can provide both - inordered traversal and better performance over map and set.
